Engineering plastic panels for temporary access, construction traffic and surface protection. Start with your site conditions and equipment requirements to define the material and panel specification.
A protective surface for temporary working routes.
Temporary access
Plan temporary routes between site entrances, work areas and maintenance locations. Confirm the route layout, traffic and ground conditions.
Construction access
Describe the equipment and frequency of movement so panel design, thickness and connections can be reviewed together.
Lawn & surface protection
Panels provide a separating surface between site traffic and the ground. Suitability depends on the ground, installation and operating conditions.
Supply specifications
On smaller screens, scroll horizontally within the table to view all columns.
Length (mm)
Width (mm)
Thickness (mm)
Approx. Weight (kg/panel)
1220
2440
10
29.8
1000
2000
10
20.0
4000
2000
10
80.0
6000
2000
10
120.0
1220
2440
12
35.7
1000
2000
12
24.0
4000
2000
12
96.0
6000
2000
12
144.0
1220
2440
15
44.7
1000
2000
15
30.0
4000
2000
15
120.0
6000
2000
15
180.0
1220
2440
20
59.5
1000
2000
20
40.0
4000
2000
20
160.0
6000
2000
20
240.0
1220
2440
25
74.4
1000
2000
25
50.0
Standard colour: Black.
Custom colours are available on request.
Weights are approximate. Specific dimensions, material grade and tolerances are confirmed per order.
Define the specification for your site.
HDPE and UHMWPE are separate material options. Product dimensions and configurations are confirmed against the application rather than assumed from a general catalogue range.
Material
Specify HDPE or UHMWPE, the required grade and any documentation needed. These materials are not interchangeable by default.
Dimensions
Provide panel length and width, route width, turning areas and any restrictions on panel handling.
Thickness
State your requested thickness, if known, along with equipment loads and ground conditions for review.
Colour
Include the required colour and quantity. Availability is confirmed for the selected material and specification.
Surface texture
Describe the preferred tread pattern, contact surfaces and use conditions.
Connections
Provide the installation layout and preferred connection arrangement. Hole positions, connector details and compatibility require confirmation.
Final supply dimensions, material grade, tolerances and connection details must be agreed before ordering.

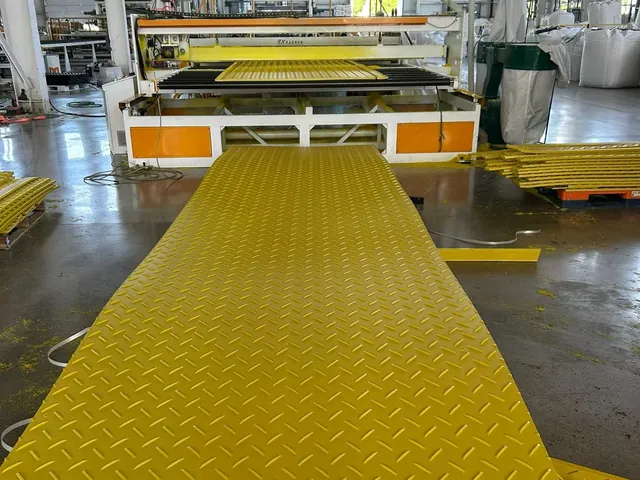

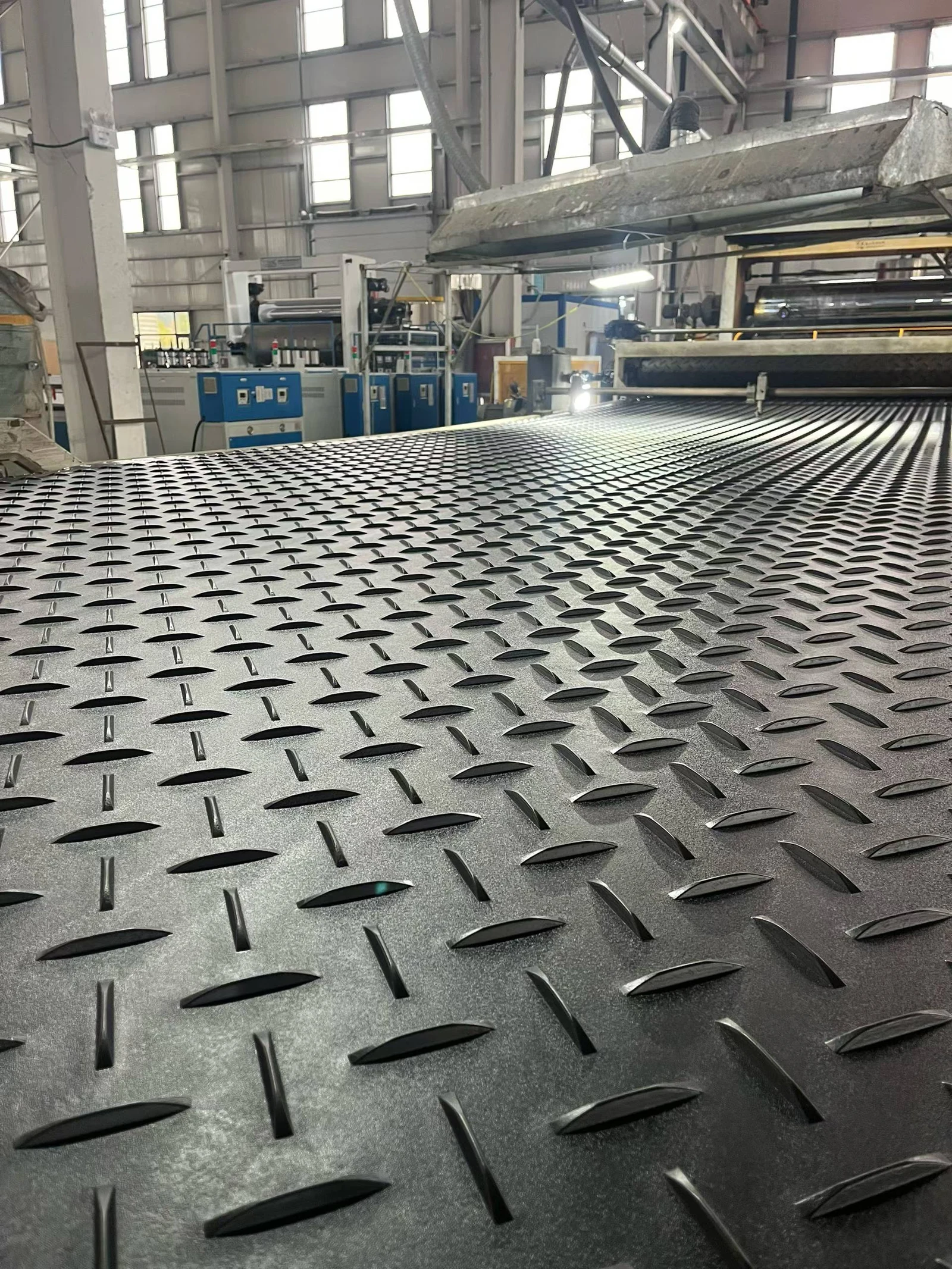

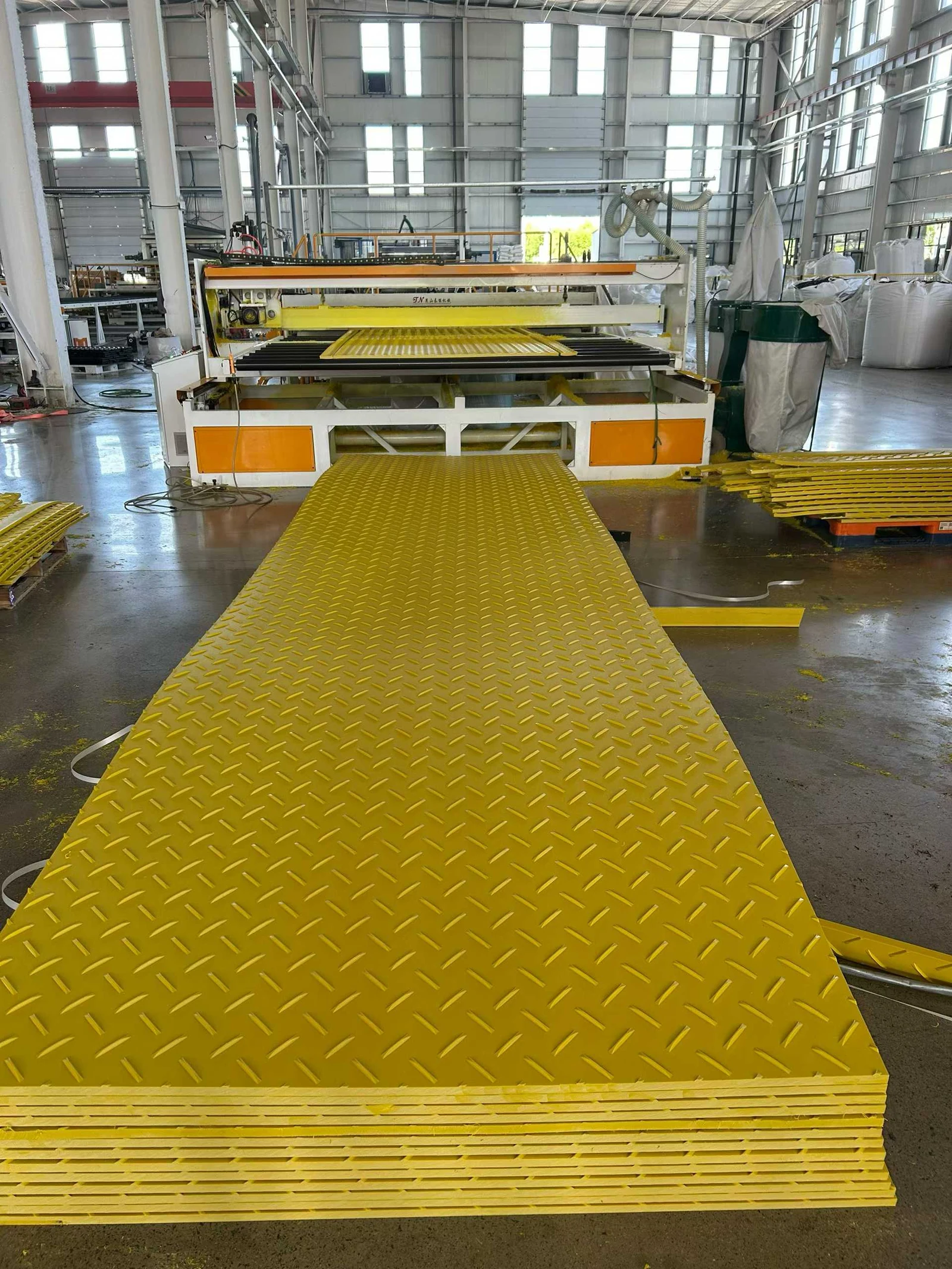

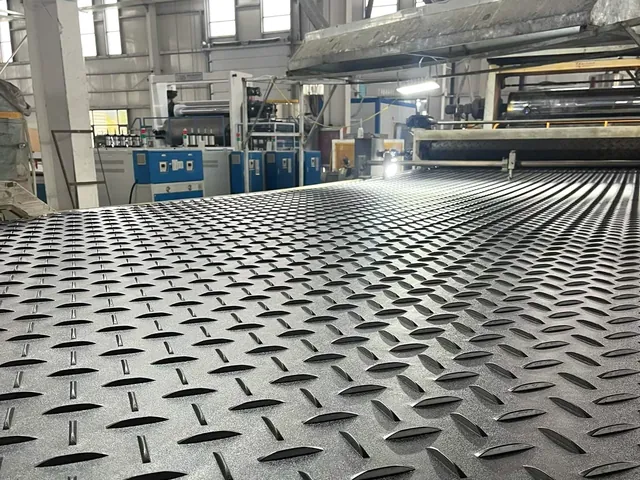

A view inside production.
Real workshop photographs show textured panels and coloured mats around production equipment. Open a photo to see the full scene.
There is no single load rating suitable for every site. Ground bearing conditions, contact pressure, equipment movement, panel design and installation must be considered together.
Equipment & loading
Equipment type, working weight, wheel or track configuration, axle loads or contact pressure where available.
Ground & operation
Soil or surface condition, slope, wet areas, movement frequency and the planned installation method.
Route & quantity
Route length and width, turns, working areas, requested panel quantity and any drawing or layout reference.
Destination & delivery
Country, destination or port, preferred packing and any project delivery requirements.
Tell us the intended use and operating conditions. HDPE and UHMWPE are different polyethylene materials, and the material grade must be confirmed for the panel specification.
Can the panel size, colour and surface be customized?
Share the dimensions, thickness, colour, tread and connection requirements you need. Feasible combinations and final specifications must be confirmed for the order.
What load can the mats support?
A universal load figure cannot describe every installation. Provide equipment loading, contact conditions, ground information and route details for review. The product must not be selected from equipment weight alone.
What do I need to request a quote?
Provide equipment loads, ground conditions, route dimensions, quantity and destination, plus your preferred material and any drawings. Use the quote button to start an enquiry for Ground Protection Mats.
Discuss your ground protection requirements.
Describe the equipment loads, ground conditions, route dimensions, quantity and destination. Add your preferred material and panel details where known.
