UHMWPE panels for two distinct applications: wear liners for industrial material handling and facing panels used within port fender systems. Define the panel geometry, fixing layout and working conditions around your project.
UHMWPE wear liners for the contact surfaces of industrial conveying and storage equipment, including hoppers, chutes and bunkers. Panel shapes and fixings are reviewed against the equipment and handled material.

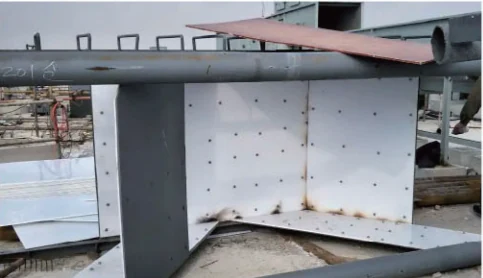

Hoppers & chutes
Lining panels for loading, discharge and transfer surfaces in bulk material handling.

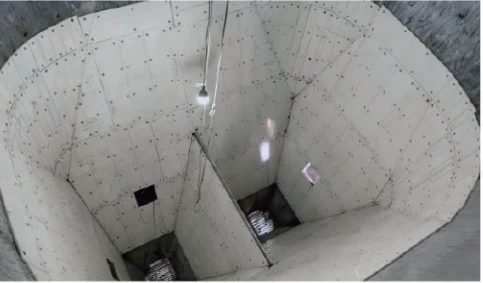

Storage equipment
Liners for bunkers and storage surfaces handling materials such as coal, cement, lime or mineral powders.
Share the equipment layout, panel dimensions, thickness and fixing positions. Include the handled material, particle size, contact conditions and any required material-grade documentation.

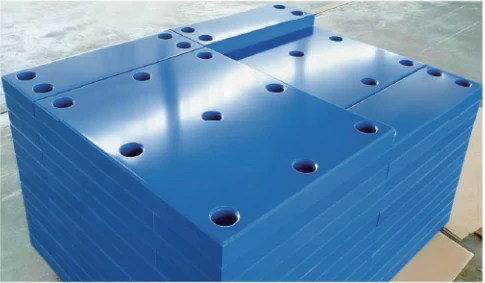

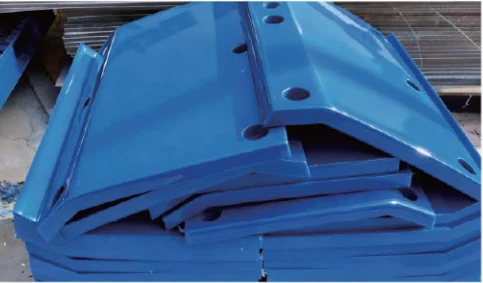

UHMWPE facing panels for the contact face of port and dock fender assemblies. These are facing components used within a fender system; they are not a complete fender system.
Fender contact surfaces
Facing panels used on fender assemblies at ports and docks. The assembly design and operating conditions define the requirements.
Panel replacement & fit-up
Provide the existing panel layout or an approved drawing to review profiles, joint positions and mounting interfaces.
Provide overall dimensions, thickness, profiles, hole centres, hole details and mounting drawings. Confirm the supporting assembly and contact conditions; panel supply does not establish the capacity of the complete fender system.
Finished liners and fender facing panels are specified for their application and mounting layout. A raw UHMWPE sheet supply range is not a complete specification for these finished products.
Drawings & panel layout
Provide a drawing revision, panel identification, overall dimensions, thickness and required edge profiles. Mark critical dimensions and tolerances for review.
Holes & fixing interfaces
Include hole positions, hole diameters, recess or countersink details where needed, and the mating structure or mounting arrangement.
Quantity & use conditions
State quantities by drawing or panel type, handled material or contact surface, movement and environmental conditions. Include the destination and any packaging needs.
Material & acceptance requirements
Confirm UHMWPE material grade, colour, inspection criteria and any required test documentation. Finished dimensions, performance, tolerances, certification and lead time are agreed for the order.
How do industrial liners differ from fender facing panels?
Industrial liners cover contact surfaces in material conveying and storage equipment. Fender facing panels form the contact face of a port fender assembly. The application and mounting requirements differ.
Are fender facing panels a complete fender system?
No. The page covers UHMWPE facing panels only. The supporting structure, rubber fender, chains, anchors and other system components must be defined by the fender system design.
Can the UHMWPE sheet size range be used as a finished-panel specification?
No. Raw sheet supply dimensions do not define a finished liner or facing panel. Provide the panel drawing, thickness, profiles, hole layout and installation requirements for order-specific confirmation.
Can panels be made to drawings?
Share the drawing, dimensions, thickness, hole positions and quantities. Profiles, drilling details, material grade, colour and inspection requirements are reviewed before the final specification is agreed.
What should I include with an enquiry?
Specify Industrial Liners or Fender Facing Panels in the requirements. Attach drawing references, dimensions, thickness, hole details, quantity, use conditions and destination. Contact us by email or WhatsApp for drawings; this website form remains a preview only.
Tell us about your panel requirements.
Specify Industrial Liners or Fender Facing Panels, then share your drawings, dimensions, thickness, hole layout, quantity and use conditions.
