Ultra-high molecular weight polyethylene sheet material for industrial wear liners, sliding components and machined parts. Start with your application, then confirm the sheet size, thickness, colour and material grade for your order.
Sheet material for industrial lining applications, including hoppers and chutes. Share the handled material, contact conditions and fixing layout for review.
Sliding components
For sliding blocks, guides and other contact parts. Confirm the mating surface, movement and working environment when selecting the material grade.
Machining applications
A starting material for cut panels and components with profiles, holes or slots. Provide drawings and the dimensions that matter to the finished part.
Confirmed supply range
The following sheet formats and thickness range are part of Orbiva’s confirmed supply range. Dimensions below are listed as width × length.
On smaller screens, scroll horizontally within the table to view all columns.
Width (mm)
Length (mm)
Thickness supply range (mm)
1260
3080
10–300
1050
4150
1510
4150
1550
5150
1040
6025
1280
6100
This is a supply range, not a stock list. Each width, length and thickness combination is confirmed per order; not every combination is necessarily available or held in stock.
Colour & drawing-based customization
Custom colours

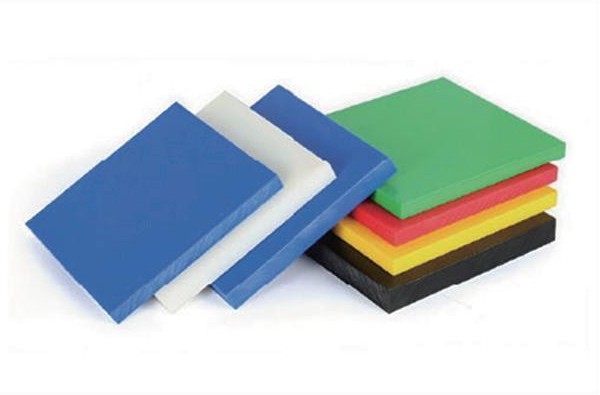

Colours can be customized on request. Confirm your colour reference and the selected material grade with the order.
Processing to drawings
Send a drawing or sample dimensions for cut-to-size panels, profiles, holes and slots. Machining feasibility, tolerances and inspection requirements are agreed for the actual part.
Conventional sheets & special grades
Conventional UHMWPE sheets
For general UHMWPE sheet enquiries, describe the application and confirm the conventional material grade. The special properties of modified grades are not implied for conventional sheets.
Special-grade enquiries
Flame-retardant and anti-static options are separate grade enquiries. Define the required property and test standard; availability and supporting documentation must be confirmed for that grade and order.
No special-grade performance, certification or food-contact qualification is implied for all sheets. Any such requirement needs separate confirmation and supporting documentation.

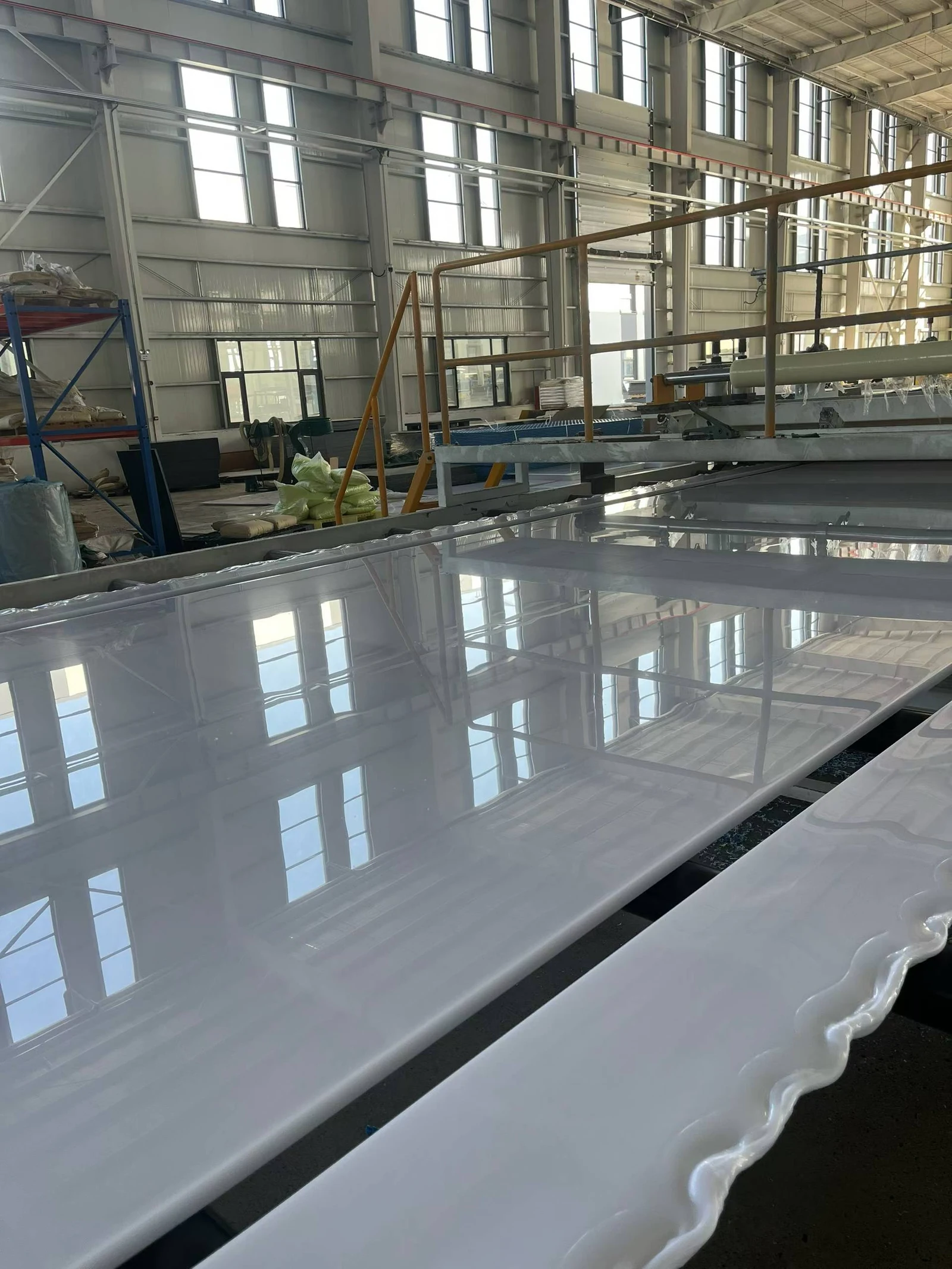

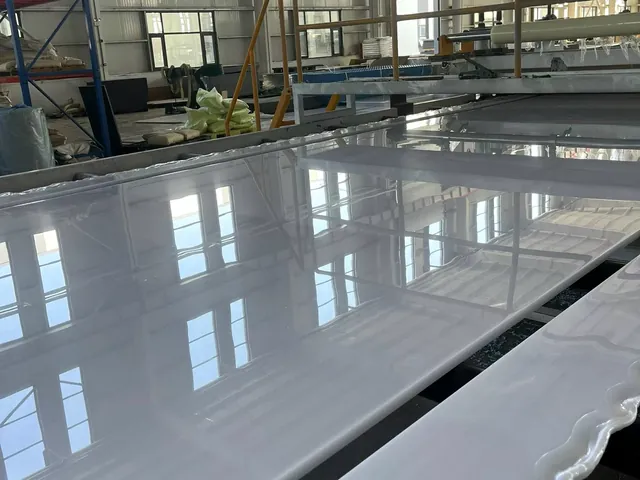

A view of sheet production.
Sheet production in our workshop. Open the full photo to view the complete scene.
UPE is another name used for ultra-high molecular weight polyethylene (UHMWPE). UHMWPE is distinct from HDPE; specify the material and grade explicitly.
Can I order any thickness in every sheet format?
The confirmed thickness supply range is 10–300 mm, with the six sheet formats listed above. Exact format and thickness combinations are reviewed per order; the table does not indicate stock availability.
Can you supply custom colours or machined parts?
Share the required colour and a drawing or sample dimensions. Include profiles, holes, slots, critical dimensions and quantity so the specification and machining requirements can be reviewed.
Do all sheets have flame-retardant or anti-static properties?
No. These are separate special-grade enquiries. Specify the required property and test standard; suitability and documentation must be confirmed for the actual grade.
What should I include in my enquiry?
Provide width, length, thickness, colour, quantity, application conditions and destination. Add the material grade, drawings, tolerances and documentation requirements where known. Weight, tolerances and lead time are confirmed for the order.
Define your sheet requirements.
Share the sheet format, thickness, colour, quantity and destination. Include the application, drawings and any grade-specific requirements.
